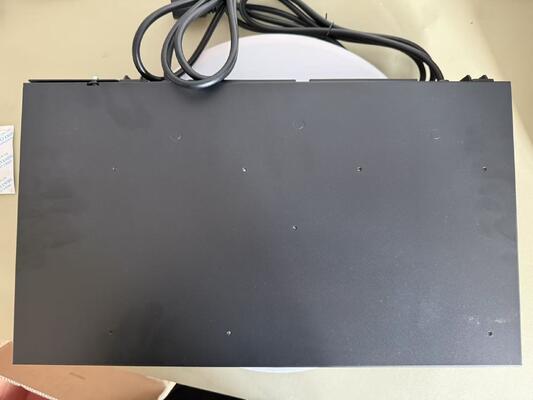

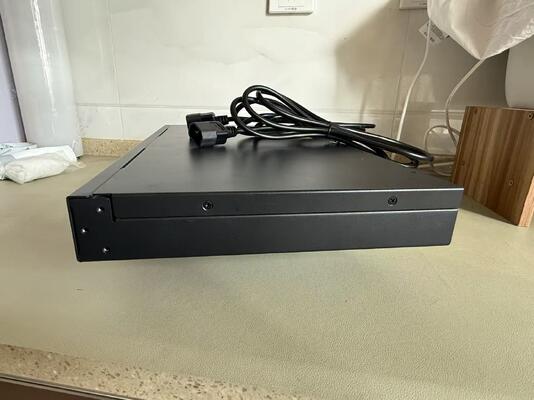

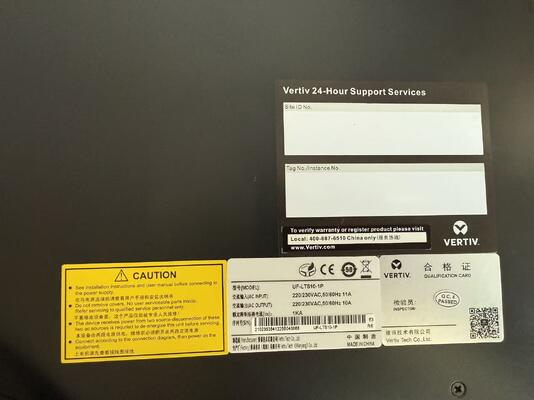

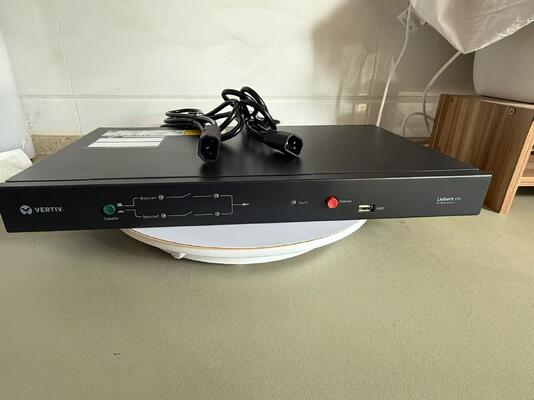

UF-LTS10-1P 10A 208V Dual Power Static Transfer Switch, Auto Changeover Switch With IEC C13

1 stks
MOQ
Inquiry
Prijs
UF-LTS10-1P 10A 208V Dual Power Static Transfer Switch, Auto Changeover Switch With IEC C13
Kenmerken Galerij Productomschrijving Beoordelingen en recensie Verzoek om een Citaat
Kenmerken
Specificaties
Merknaam: Vertiv
Modelnummer: STS-10/32A
Nominale stroom: 10A
Max. Huidig: 32A
IP-niveau: IP11
Productnaam: STS AC220V sts eenfasige STS statische overdrachtsschakelaar
Type: hoge spanning
Nominale stroom: 10A 16A 32A
Nominale spanning: AC 220V
Basis informatie
Plaats van herkomst: China
Merknaam: Vertiv
Modelnummer: UF-LTS10-1P
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: Kartons
Levertijd: 5-6 weken
Betalingscondities: T/T
Levering vermogen: 500 sets per maand
Productomschrijving

UF-LTS10-1P 10A 208V Dual Power Static Transfer Switch, Auto Changeover Switch With IEC C13 0

STS (System Transfer Switch) provides two power sources for important single power source load withautomatic transfer function, and the load is powered by the main power source when the main powersource is normal When the main power source fails, the load can be automatically transferred to backuppower source quickdy. After the main power source restores to normal, the load can be transferred backto the main power source.



Specification



Items (10A, 16A) Specifications (32A) Specifications











Input

 Input source Two AC inputs
Input mode 1Ф+N+PE
Rated voltage 220/230Vac
Rated frequency 50/60Hz
Voltage range 150~300Vac
Frequency range Rated frequency±5Hz
Voltage distortion <10%





Output

 Power factor 0.75~1.0 leading or lagging 0.8~1.0 leading or lagging
Overload capability 125%, 30min
Efficiency (100% linear load) 0.99 0.98



Transfer

 Number of poles 2 poles
Interrupt time for automatic transfer <6ms(typical value), <11ms(Max value)
Environmental parameters
Items Normal range
Operating temperature 0~40°C
Storage temperature -40~70°C
Relative humidity 5~95%, no condensation
Elevation 3000m
Mechanical parameters



Dimensions (H X W X D)

 Weight
Pure weight of standard unit Including the weight of parts
44mm×430mm×250mm (10A, 16A) 4.5kg 5kg
84mm×430mm×340mm (32A) 5kg 6kg



UF-LTS10-1P 10A 208V Dual Power Static Transfer Switch, Auto Changeover Switch With IEC C13 1

UF-LTS10-1P 10A 208V Dual Power Static Transfer Switch, Auto Changeover Switch With IEC C13 2UF-LTS10-1P 10A 208V Dual Power Static Transfer Switch, Auto Changeover Switch With IEC C13 3UF-LTS10-1P 10A 208V Dual Power Static Transfer Switch, Auto Changeover Switch With IEC C13 4UF-LTS10-1P 10A 208V Dual Power Static Transfer Switch, Auto Changeover Switch With IEC C13 5UF-LTS10-1P 10A 208V Dual Power Static Transfer Switch, Auto Changeover Switch With IEC C13 6

UF-LTS10-1P 10A 208V Dual Power Static Transfer Switch, Auto Changeover Switch With IEC C13 7UF-LTS10-1P 10A 208V Dual Power Static Transfer Switch, Auto Changeover Switch With IEC C13 8
