Cooling Capacity 42.5KW In Row Air Cooled Precision Data Center HVAC R410A Refrigerant

1
MOQ
Inquiry
Prijs
Cooling Capacity 42.5KW In Row Air Cooled Precision Data Center HVAC R410A Refrigerant
Kenmerken Galerij Productomschrijving Beoordelingen en recensie Verzoek om een Citaat
Kenmerken
Specificaties
Model: L40
Luchtvolume (m3/h): 10000
Het koelen capaciteit (kW): 42.5
Voeding (v): 220V-3Ph-60Hz
Koelmiddel: R410A
Elektrische verwarming: PTC
Elektrisch verwarmingsvermogen (kW): 3
Externe dimensies (mm): 300*1200*2000
Eenheidsgewicht (kg): 295
Buitenunit: 125
Basis informatie
Plaats van herkomst: China
Merknaam: Hailos
Modelnummer: L40
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: houten dozen
Levertijd: 5-8 weken
Betalingscondities: T/T
Levering vermogen: 500 sets per maand
Productomschrijving
Description

in-row air condktionerL series is a serles of precision airconditioners for high heat density data centers. It has variaus refrigeratlion methods such as air-cooled direct expansion type and chilled water type. Designed close to the heat source, cosing thecold and hot aisles, greatly improving the cooling effidency, and eftectively reducing the PLE af the equipment room through high AER system design and precise control

Appllcation

  • Modular Data Center
  • High Thermal Density Data Center
  • Container Data Center
Specification

No. Description Model
1
Model L40
2 Unit performance Air volume (m³/h) 10000
3 Cooling capacity (kW) 42.5
4 Number of compressors (units) 1
5 Operating mode Constant temperature and humidity type
6 Compressor type Variable frequency scroll compressor
7 External static pressure (Pa) 50--300
8 Power supply (V) 220V-3Ph-60Hz
9 refrigerant R410A
10 Expansion valve Electronic expansion valve
11 Electric heating type PTC
12 Electric heating power (kW) 3
13 Humidifier type wet film
14 Humidification rate (kg/h) 3
15 Temperature control range (°C) 18-30
16 Humidity control range (RH%) 45-70
17 Temperature control accuracy (°C) ±2
18 Humidity control accuracy (RH%) ±5
19 Indoor unit Evaporator type Copper tube with aluminum fins
20 air filter G4 Level Initial Effect
21 Indoor fan type EC
22 External dimensions (mm) W 600
23 D 1200
24 H 2000
25 Unit weight (Kg) 295
26 outdoor unit Condenser type Copper tube sleeve aluminum fin
27 Number of outdoor units (units) 1
28 Outdoor unit weight (Kg) 125
29 External dimensions (mm) W 850
30 D 550
31 H 1600
32 other Indoor unit air supply method Rear intake/front discharge
33 Tracheal tube dimensions (φmm) 19
34 Liquid tube dimensions (φmm) 16
35 Condensate drain pipe (φmm) 19
36 Humidifier water inlet pipe (φmm) G1/2"
37 It is recommended to use the main cable. 10²*3+4²*2
38 Cables are used to connect indoor and outdoor units. 2.5²*3
39 Remote control system interface RS485
40 It has a power failure memory function Automatic power-on after power failure and reset

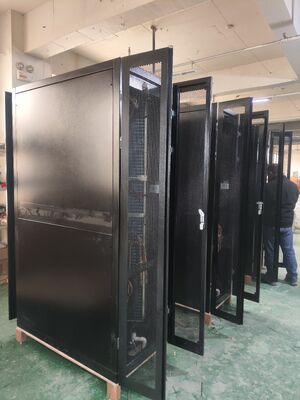

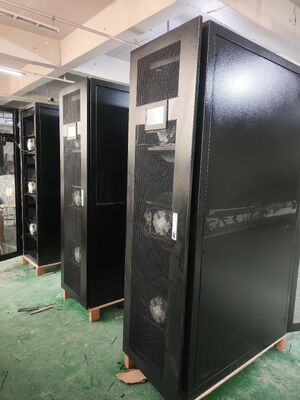

Product Display

Cooling Capacity 42.5KW In Row Air Cooled Precision Data Center HVAC R410A Refrigerant 0

Cooling Capacity 42.5KW In Row Air Cooled Precision Data Center HVAC R410A Refrigerant 1

Cooling Capacity 42.5KW In Row Air Cooled Precision Data Center HVAC R410A Refrigerant 2
