Precision Air Conditioner compact and constant temperature and humidity control system for computer room applications

1
MOQ
Inquiry
Prijs
Precision Air Conditioner compact and constant temperature and humidity control system for computer room applications
Kenmerken Galerij Productomschrijving Beoordelingen en recensie Verzoek om een Citaat
Kenmerken
Specificaties
MODEI: S29
Koelcapaciteit: 31.3 kW
Luchtstroom: 10040
Compressor: Rotor/vortex
Soort ventilator: AC/EC centrifugaalventilator met achterwaarts kanteling
Bevochtigen Breedte Dieptecapaciteit: 12
Luchtfilter: Plaat G4-filter
Eenheidsgrootte: 1200*650*1900
Basis informatie
Plaats van herkomst: China
Merknaam: Hailos
Modelnummer: S29
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: houten dozen
Levertijd: 5-8 weken
Betalingscondities: T/T
Levering vermogen: 500 sets per maand
Productomschrijving

Description

The launch of the S-series precision controlled const ant temperature and humiditydedicated air conditioning system for computer rooms has pushed industry standardsto a new level in terms of energy officiency, compactness, and low nonse performance

The innova tive dffuse air supply me thod achieves optimal performance while savinguser Investment and minimizhg the height requirements of the computer room. Theplug-in fan. large area evaporator. vortex compressor, and optimtzed refrigorationsystem significantly Improve energy-saving performance. The air supply method can beswitched on-site

Electronic speed regulation fan (EC fan) reduces fan power consurption by 35%The fan placed above optimizes the airflow through the evaporator coll of the lowerair supply model, improves heat transfer efficloncy (compared to the Industry average)by 20%, and reduces overall noise


Specification

Model SXX S04 S05 S07 S10 S12 S17 S20 S23 S29
cooling capacity capacity KW 4.4 5.5 8.1 10.4 12.8 16.9 20.1 25.6 31.3
Sensible cooling capacity KW 4.3 5.2 7.6 10 12.5 16.1 19 23.1 30.3
compressor Form
Rotor/Scroll
Quantity
1 1 1 1 1 1 1 1 1
Fan Type
AC/EC backward-curved centrifugal fan
Air flow m3/h 1350 1550 2300 2800 3000 5250 5800 6150 10040
Quantity
1 1 1 1 1 1 2 2 2
Heater Type
PTC
Heating amount KW 3 3 3 4 6 6 10 12 12
Humidifier Type
Wet film humidification
Humidification kg/h 3 3 3 4 4.5 4.5 9 9 9
air filter
G4 plate filter
Unit size W mm 750 750 750 750 750 750 1200 1200 1200
D mm 500 500 500 500 500 500 650 650 650
H mm 1800 1800 1800 1900 1900 1900 1900 1900 1900
Connecting pipe gas mm 12.7 12.7 12.7 15.8 15.8 15.8 22 22 22
liquid pipe mm 9.52 9.52 9.52 12.7 12.7 12.7 19 19 19
Drain pipe mm φ20 φ20 φ20 φ20 φ20 φ20 φ20 φ20 φ20
Humidifier water inlet pipe in φ20 φ20 φ20 φ20 φ20 φ20 φ20 φ20 φ20
Cooling water inlet and outlet pipes in / / / / / / / / /
Weight Indoor unit (air-cooled) kg 130 135 140 145 150 180 245 295 330
Indoor unit (water-cooled) kg 110 115 120 125 130 150 220 260 300
Power distribution parameters Power
220V/380V50HZ
Recommended circuit breaker D D32 D32 D32 D32 D32 D63 D63 D63 D63
Wiring specifications mm2 3*4 3*4 5*4 5*6 5*6 5*6 3*10+2*4 3*10+2*4 3*10+2*4
Outdoor unit Model
S04W S05W S07W S10W S12W S17W S20W S23W S29W
Quantity
1 1 1 1 1 1 1 1 1
Weight kg 30 35 40 50 50 60 80 100 120
Wiring specifications mm2 3*1.5 3*1.5 3*1.5 3*1.5 3*1.5 3*2.5 3*2.5 3*2.5 3*2.5
W mm 800 800 960 960 850 850 850 850 850
D mm 290 290 380 380 455 455 455 455 455
H mm 600 600 800 800 800 1600 1600 1600 1600

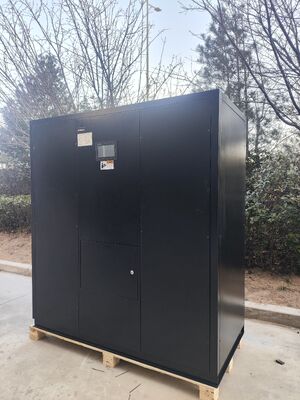

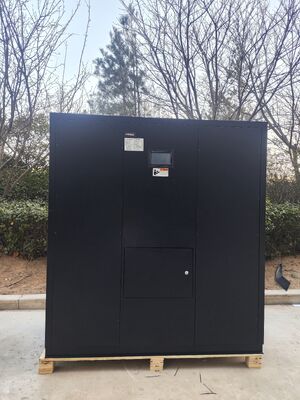

Product Display

Precision Air Conditioner compact and constant temperature and humidity control system for computer room applications 0

Precision Air Conditioner compact and constant temperature and humidity control system for computer room applications 1

Precision Air Conditioner compact and constant temperature and humidity control system for computer room applications 2
