Thuis /Producten/Precision Air-Veredelingsmiddel/45.8kW Precision Air Conditioner Model S41 Top Supply & Rear Return R410a Refrigerant for Data Centers

45.8kW Precision Air Conditioner Model S41 Top Supply & Rear Return R410a Refrigerant for Data Centers

1 stks
MOQ
Inquiry
Prijs
45.8kW Precision Air Conditioner Model S41 Top Supply & Rear Return R410a Refrigerant for Data Centers
Kenmerken Galerij Productomschrijving Beoordelingen en recensie Verzoek om een Citaat
Kenmerken
Specificaties
Binneneenheidsmodel: S41
Luchtvolume (m3/h): 12.470
Het koelen capaciteit (kW): 45.8
Aantal compressoren (eenheid): 2
Externe statische druk (Pa): 30
Voeding (v): 380-50hz
Koelmiddel: R410A
Verdampertype: Koperbuis met aluminiumvinnen
Luchtfilter: Primaire efficiëntie
Type ventilator voor binnenruimten: T/T
Markeren:

45.8kW precision air conditioner

,

data center air conditioner R410a

,

top supply rear return AC
Basis informatie
Plaats van herkomst: China
Merknaam: Hailos
Modelnummer: S41
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: houten dozen
Levertijd: 6-8 weken
Betalingscondities: T/T
Levering vermogen: 500 sets per maand
Productomschrijving
45.8kW Precision Air Conditioner Model S41
Top Supply & Rear Return R410a Refrigerant for Data Centers
Product Overview
High-Efficiency Cooling & Stable Temperature Control for Precision Environments
  • Delivers a large cooling capacity of 45.8kW, paired with Copeland/Panasonic hermetic scroll compressors. Its cooling efficiency is 15% higher than traditional units, enabling rapid temperature balance in high-heat-density environments like data centers and laboratories.
  • Features precise temperature control ranging from 17-30℃ (±2℃ accuracy) and humidity control from 45-75%RH (±5%RH accuracy), preventing damage to precision equipment caused by environmental fluctuations.
  • Uses R410a eco-friendly refrigerant (fluorine-free and non-polluting), complying with international environmental standards such as EU RoHS and US EPA, eliminating concerns about export compliance.
Technical Specifications
No. Category Parameter Value
1 Unit Performance Indoor Unit Model S41
2 Air Volume (m³/h) 12,470
3 Cooling Capacity (kW) 45.8
4 Number of Compressors (Unit) 2
5 Operation Mode Constant Temperature & Humidity
6 Compressor Type Scroll Compressor
7 External Static Pressure (Pa) 30
8 Power Supply (V) 380-50HZ
9 Refrigerant R410a
10 Expansion Valve Thermostatic Expansion Valve
11 Electric Heating Type PTC
12 Electric Heating Power (kW) 18
13 Humidification Type Wet Film
14 Humidification Capacity (kg/h) 13
15 Temperature Control Range (℃) 17-30
16 Humidity Control Range (RH%) 45-75
17 Temperature Control Accuracy (℃) ±2
18 Humidity Control Accuracy (RH%) ±5
19 Indoor Unit Evaporator Type Copper Tube with Aluminum Fins
20 Air Filter Primary Efficiency
21 Indoor Fan Type AC
22 Overall Dimensions - Width (mm) 1200
23 Overall Dimensions - Depth (mm) 750
24 Overall Dimensions - Height (mm) 2000
25 Net Weight (kg) 380
26 Gross Weight (kg) 420
27 Outdoor Unit Outdoor Unit Model M41
28 Overall Dimensions - Width (mm) 1400
29 Overall Dimensions - Depth (mm) 850
30 Overall Dimensions - Height (mm) 1600
31 Net Weight (kg) 220
32 Gross Weight (kg) 250
33 Connection Details Connection Pipe Length (m) 15 (Max 30)
34 Liquid Pipe Diameter (mm) 12
35 Gas Pipe Diameter (mm) 22
36 Power Supply Cable 3*4²
37 Indoor-Outdoor Unit Connection Power Cable 3*2.5²
38 Humidifier Water Inlet Pipe (φmm) 20
39 Condensate Drain Pipe (φmm) 25
Product Images

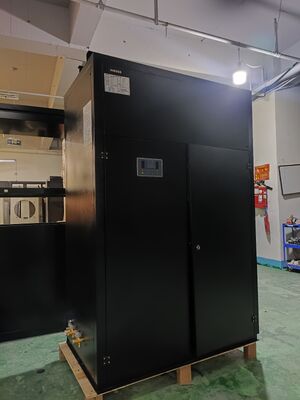

45.8kW Precision Air Conditioner Model S41 Top Supply & Rear Return R410a Refrigerant for Data Centers 0

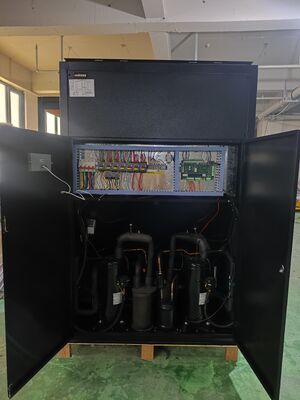

45.8kW Precision Air Conditioner Model S41 Top Supply & Rear Return R410a Refrigerant for Data Centers 1

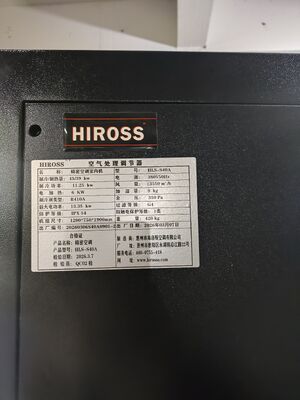

45.8kW Precision Air Conditioner Model S41 Top Supply & Rear Return R410a Refrigerant for Data Centers 2

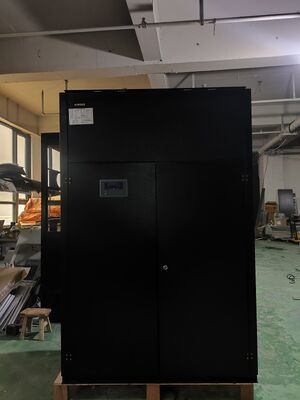

45.8kW Precision Air Conditioner Model S41 Top Supply & Rear Return R410a Refrigerant for Data Centers 3
45.8kW Precision Air Conditioner Model S41 Top Supply & Rear Return R410a Refrigerant for Data Centers 4
