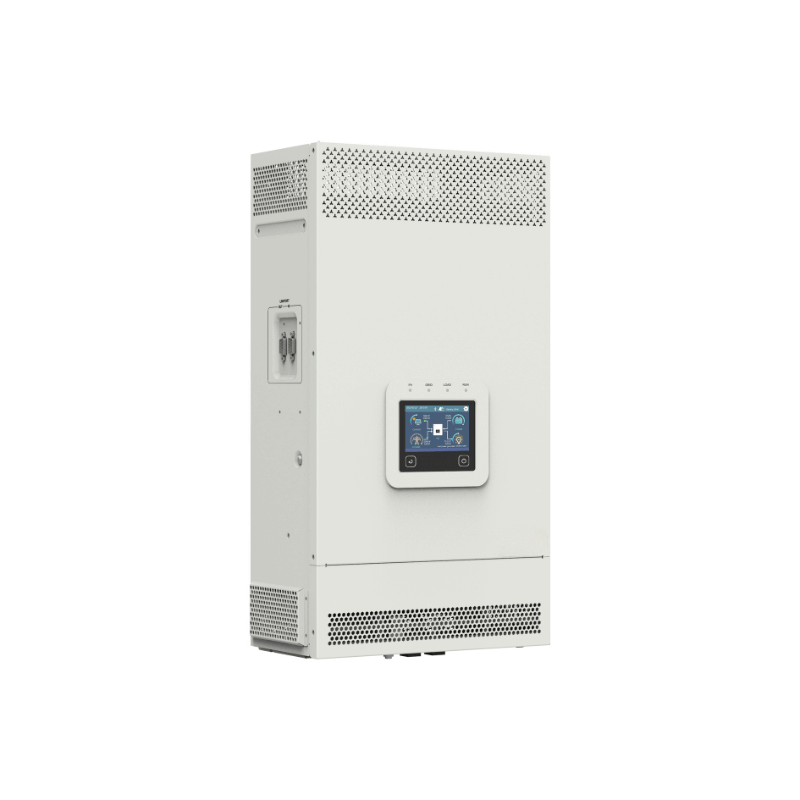

The brand new Unicorn series is an inverter/charger that supports utility charging, oil generator charging, solar charging, dual output from utility or inverter, multiple operating modes, and smart energy management. It supports parallel operation for multiple units in single phase or three phase. The inverter with power of 3.5KW and 6KW perfectly suits residential applications, schools, health facilities, government buildings, and areas where the electricity is unstable.
Specification
|
Product model
|
UC5542-1050P20/C
|
|
Utility input
|
|
|
Utility Input Voltage
|
176VAC ~ 264VAC (Default), 90VAC ~ 285VAC (Configurable)
|
|
Utility Input Frequency
|
45Hz ~ 65Hz
|
|
Max. Utility Charging Current
|
100A
|
|
Switch Response Time
|
Inverter to Utility :10ms
Utility to Inverter:20ms
|
|
Utility output
|
|
|
Rated Output Voltage
|
220/230VAC
|
|
Utility Output Frequency
|
50/60Hz
|
|
Max. Output Power
|
5500W
|
|
Power Factor
|
＞0.99
|
|
Inverter output
|
|
|
Inverter Rated Power (@30℃)
|
5500W
|
|
Output Voltage Waveform
|
Pure sine wave
|
|
Max. Main Load
|
5500W
|
|
Main Output Cut-Off Voltage
|
48.8V(Default)
|
|
PV Input
|
|
|
PV Max. Open-Circuit Voltage
|
500V
|
|
MPPT Voltage Range
|
85V ~ 450V
|
|
Max. Input Current
|
16A+16A
|
|
PV Max. Short-Circuit Current
|
18A+18A
|
|
PV Max. Input Power
|
6600W
|
|
PV Max. Charging Current
|
100A
|
|
MPPT Max. Efficiency
|
≥99.5%
|
|
Battery
|
|
|
Battery Rated Voltage
|
48VDC
|
|
Battery Work Voltage Range
|
40.8VDC~64VDC
|
|
Battery Max. Charging Current
|
100A
|
|
General Data
|
|
|
No-load Losses
|
<1.1 A
|
|
Standby Current
|
<0.8A
|
|
Communication with BMS
|
RS485
|
|
Communication with Portal
|
RS485 (4G/WiFi/Bluetooth)
|
|
Parallel Function
|
Yes, Standard 12 units, Up to 16 units
|
|
Work Temperature Range
|
-20℃~+50℃ (>30℃ Derating)
|
|
Storage Temperature Range
|
-25℃ ~ +60℃
|
|
Enclosure
|
IP20 (With anti-dust kit)
|
|
Relative Humidity
|
< 95% (N.C.)
|
|
Altitude
|
4000M (＞2000m Derating)
|
|
Certifications and Standards
|
IEC 62109-1, IEC 62109-2, IEC 61683, IEC 62368
|
|
Mechanical parameters
|
|
|
Dimension (Length x Width x Height)
|
590mm×300mm×163mm
|
|
Mounting Size (Length x Width)
|
568mm x 245mm
|
|
Mounting Hole Size
|
Φ9mm/Φ10mm
|
|
Net Weight
|
15.5Kg
|
Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.
FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.
2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.
3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.
4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.
5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
